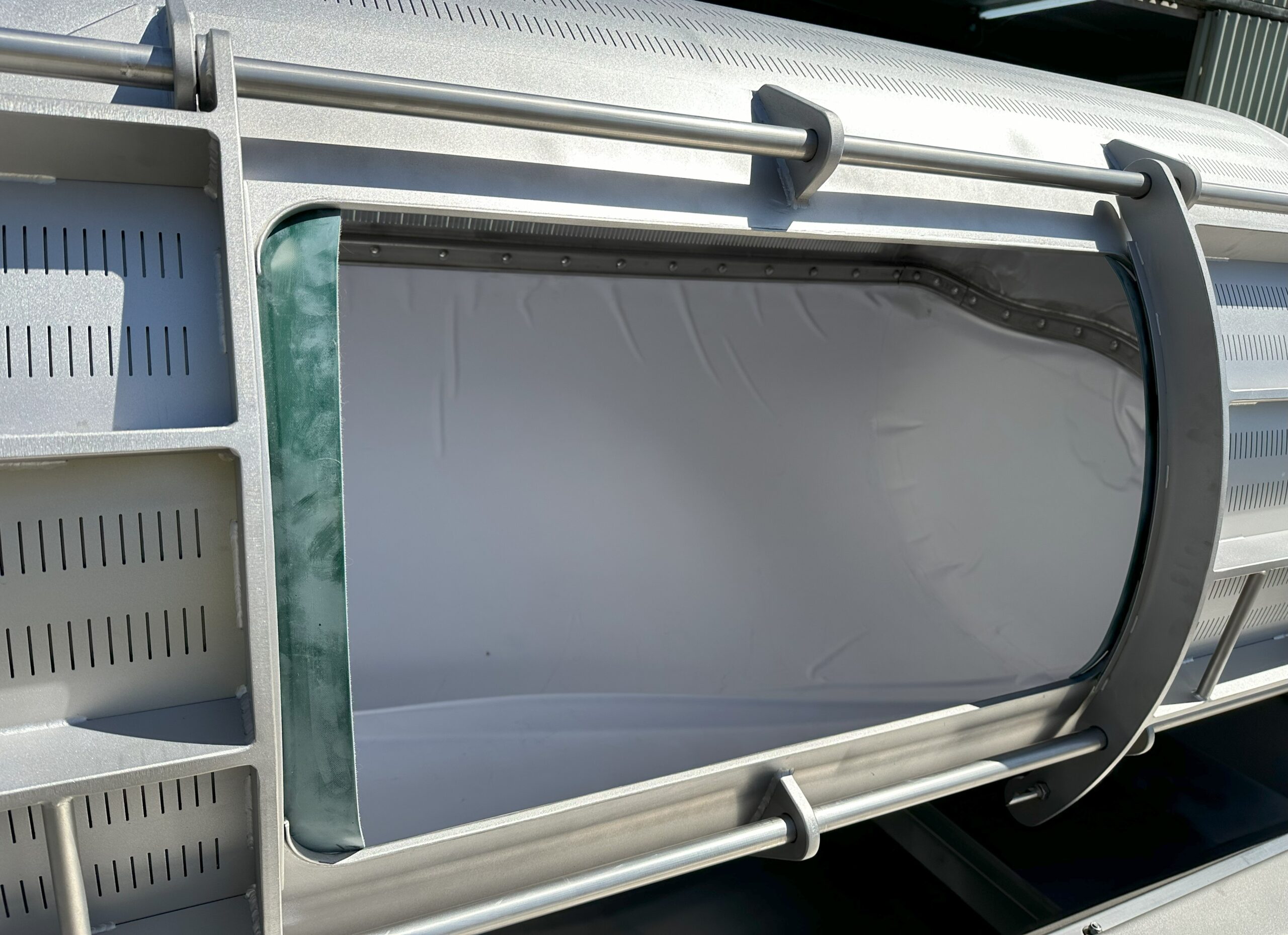

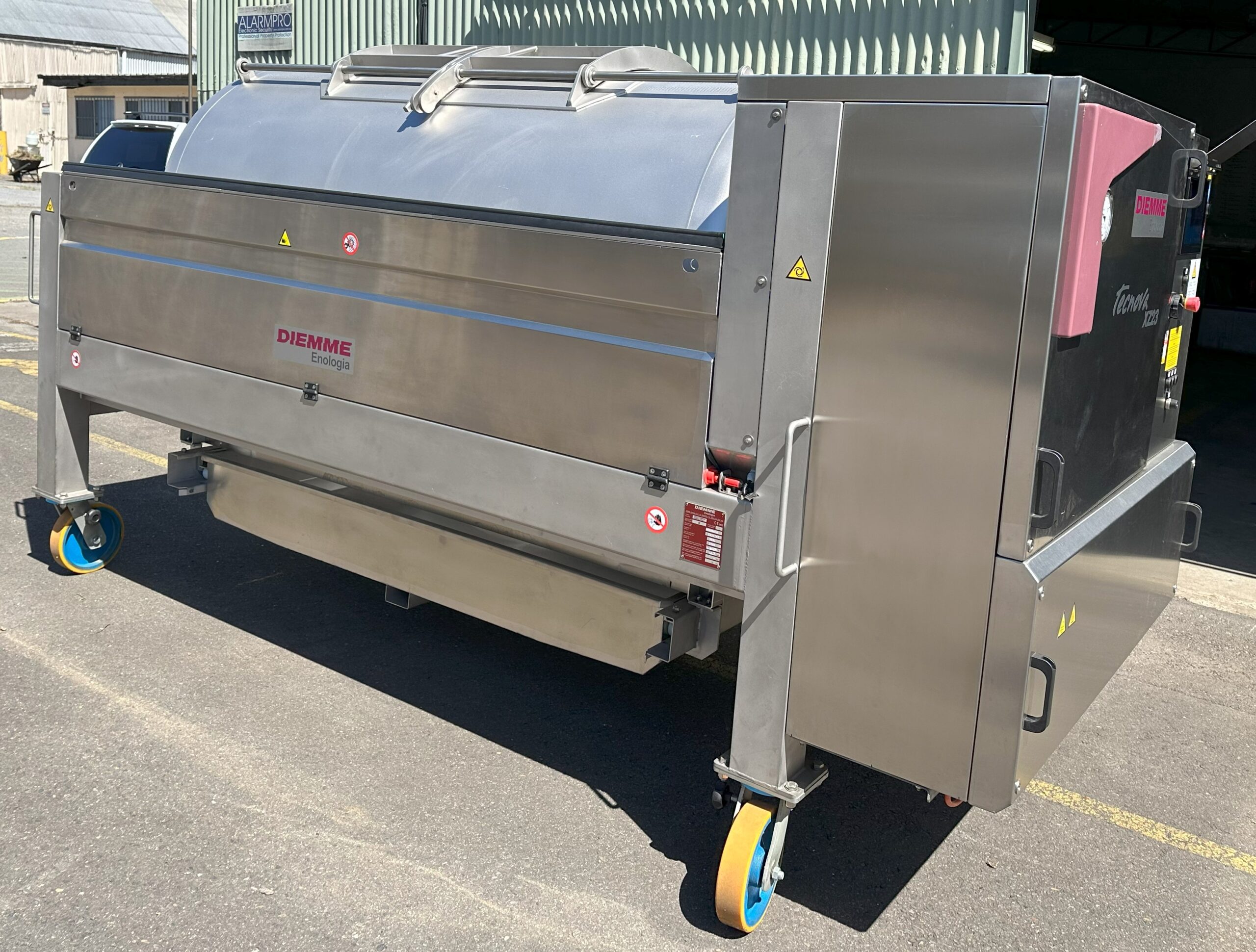

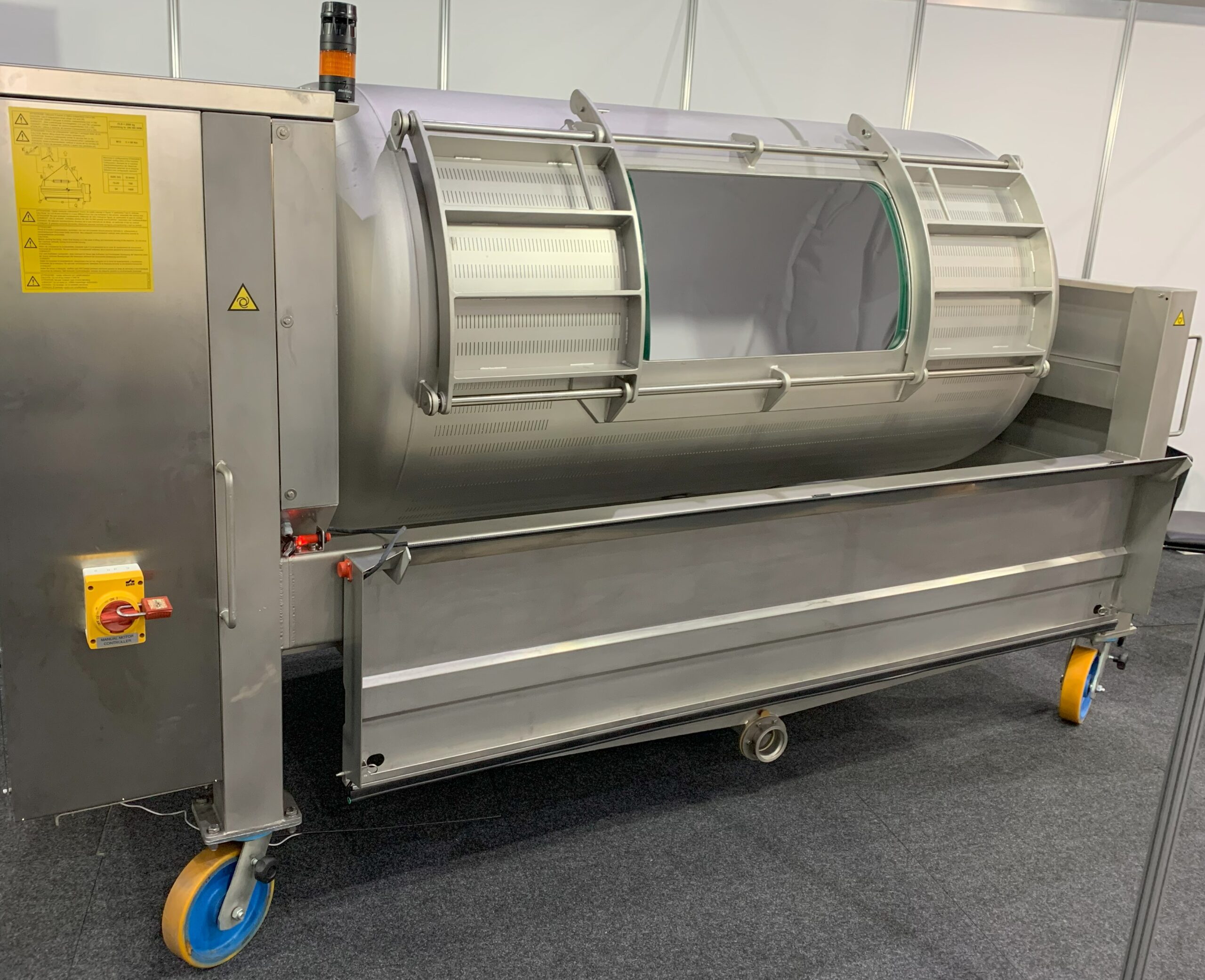

Tecnova XZ23 slotted membrane press half open AISI 304 stainless steel tank and AISI 304 stainless steel frame and covers. Complete with compressor for pressing membrane inflation. Twin door (sliding outside) with manual opening. Juice collection pan with lateral extraction made of AISI 304 stainless steel. Press on four swivel wheels. Electric control panel with operator terminal 10″ Touch Screen and operator interface E-Panel. Juice level control probe complete with eletric control for juice pump (pump excluded).
Preset for installation of manual axial infeed valve.
Tank Volume 2300 litres
Door Dimension 900mm x 480mm
Juice Pan Volume 400 litres
Power 4.8kW 415V 3 Phase 50Hz
S/N 621143
Press in Stock in McLaren Flat South Australia
Freight not included.
Overview
- Category : Equipment
- GST : Excluded
- Make/Brand : Diemme Tecnova XZ23

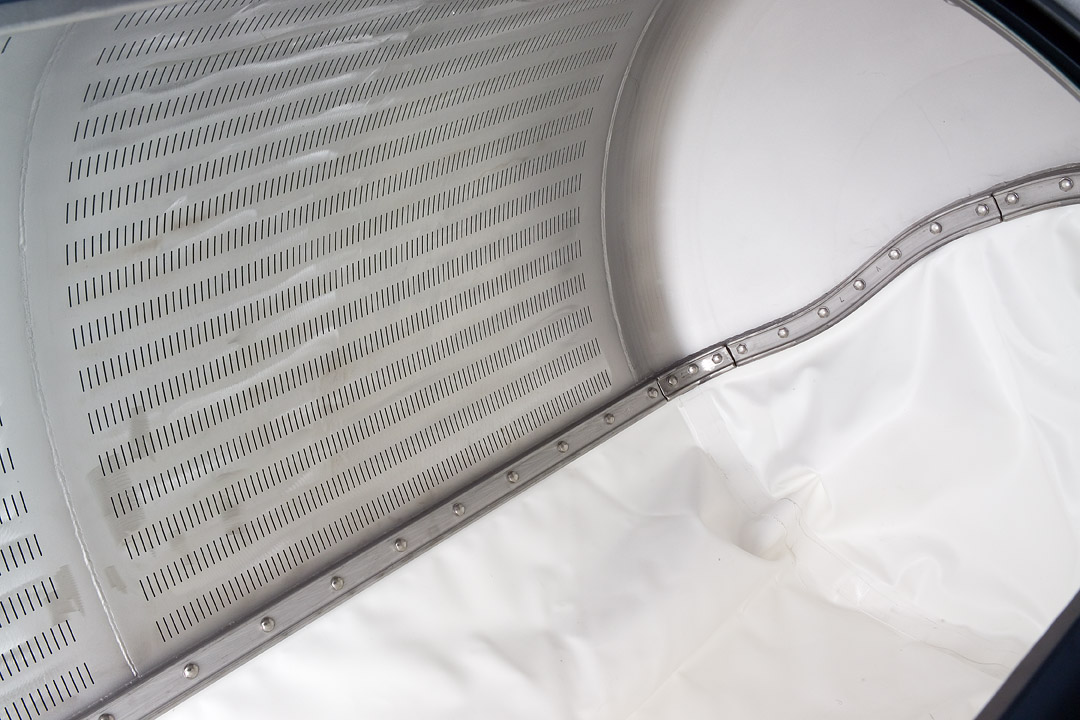

- Slotted tank – Slotted AISI 304 stainless steel tank with high draining surface along the tank and door providing maximum juice quality with minimum turbidity.

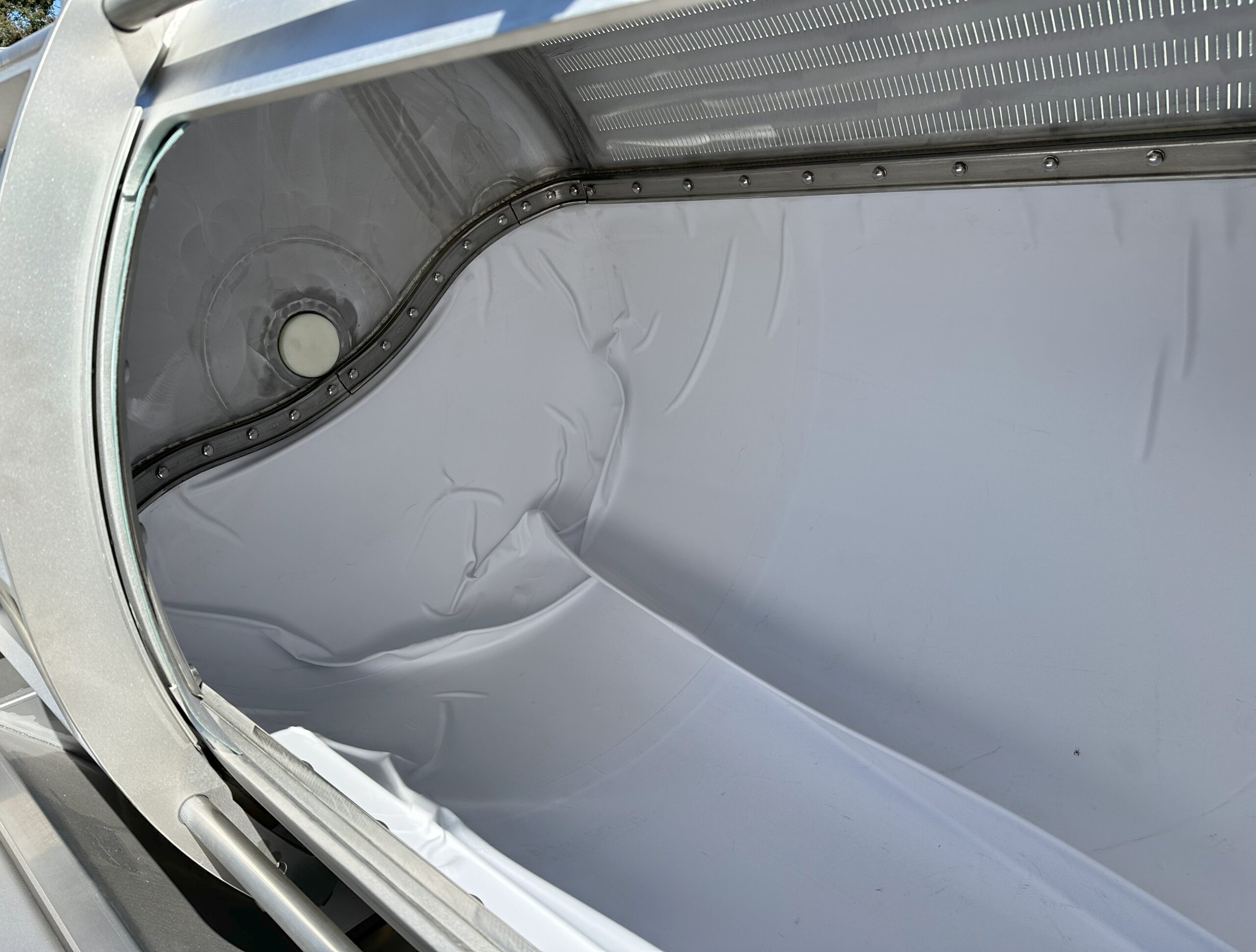

- Pressing Membrane – The membrane consists of a heavy fabric coated with a food grade polymer, it inflates even in the absence of product, no minimum load required. Quick fastening system clamping the membrane without perforation of the membrane.

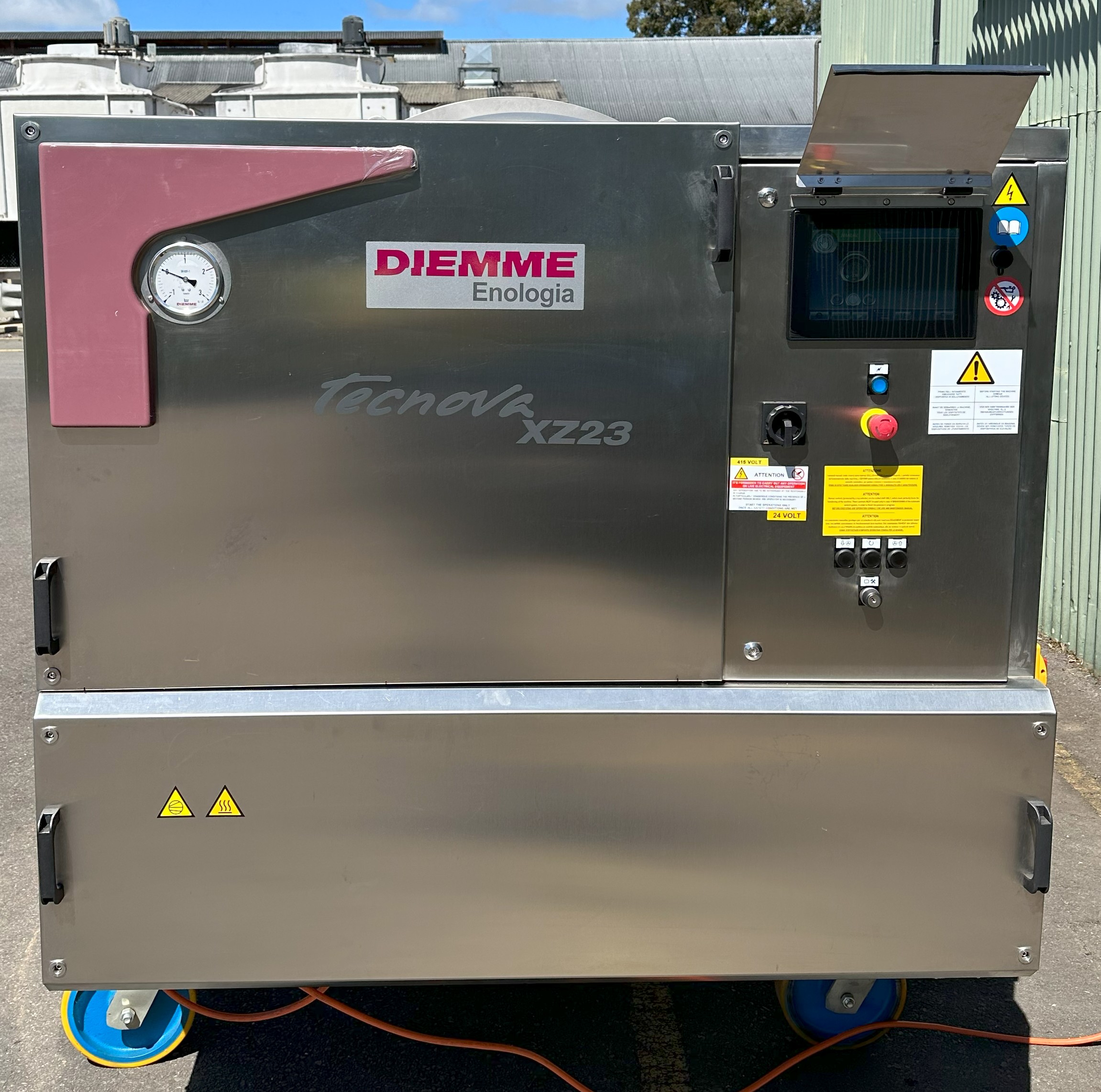

- PLC & HMI – Simple and Easy to Use Touch-Screen with programmable and easy to change programmes.
